S winder reversing eng a -m02

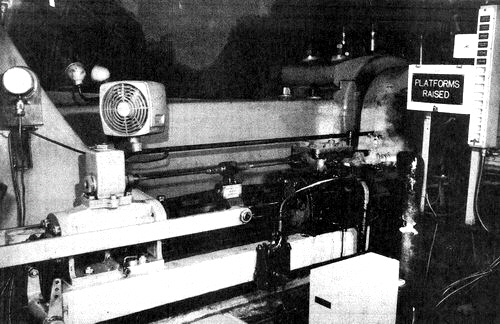

Markham winder reversing-engine  -  circa 1976

DSC00306 -m

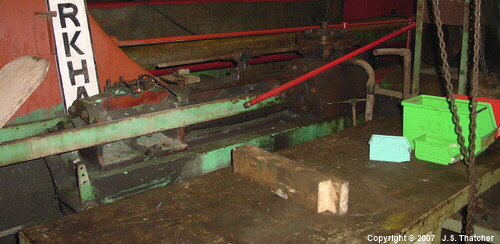

Dismantling starts on the Markham winder reversing-engine - summer 2005

P6170842a -m

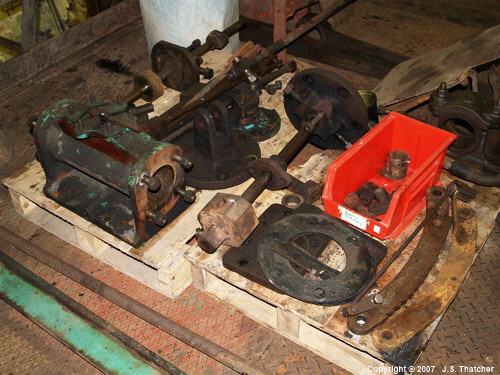

and a short time later .....

DSC01455 -s

The locking-cylinder and its valve rod

DSC01500 -s

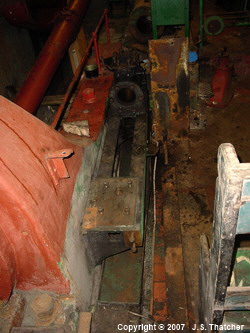

The steam-cylinder and bed-frame

P6170855-s

The steam-cylinder inlet and exhaust ports

DSC01456 -s

The locking-cylinder ports

P6170857 -s

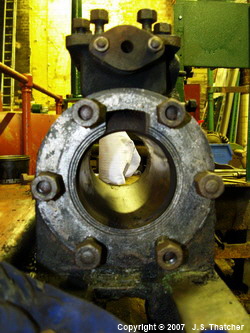

The steam-cylinder rear admission port

P6170856-s

The steam-cylinder valve chamber
