Technical | Winders | South | Engine | Valves  >  Exhaust

Section under development

DSC01020 -m

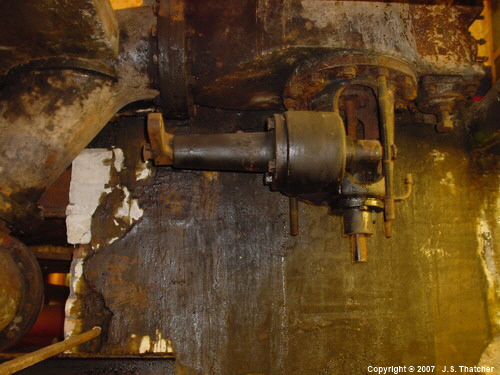

  South winder LH rear exhaust-valve operating assembly.  The operating link from the wrist plate has been removed and the valve is in the open position

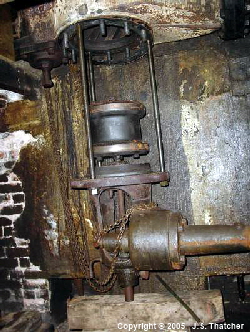

South winder RH rear exhaust valve lowered from the chambe
DSC00252a -s

South winder RH rear exhaust valve lowered from the chamber ready for overhaul.

DSC00253 -s

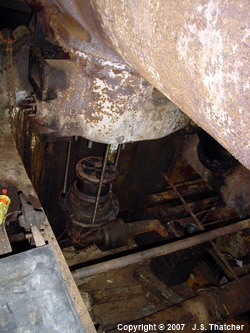

South winder RH rear exhaust  drain-valve  mountings

DSC01008a -s

South winder RH rear exhaust valve-chamber

DSC01634 -s

South winder RH front exhaust  valve-chamber discharge port

DSC01137a -s

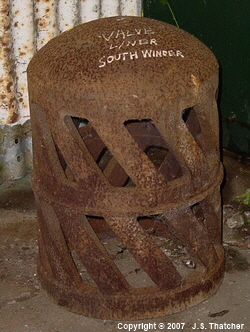

South winder RH  exhaust valve-chamber spare liner

DSC01570a -s

South winder exhaust valve - inner ribs

DSC01571a -s

South winder exhaust valve - piston rings

DSC01590a -s

South winder exhaust  drain-valve

DSC01633 -s

South winder RH front exhaust  valve-chamber

DSC01588 -s

South winder LH rear exhaust-valve in open position seen through drain vent

DSC01014 -s

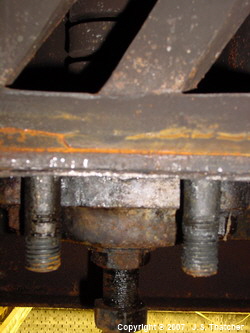

South winder RH  exhaust valve-chamber  blow-off valve spring

DSC01572a -s

South winder exhaust valve - top section

DSC01574 -s

South winder exhaust valve - piston ring
